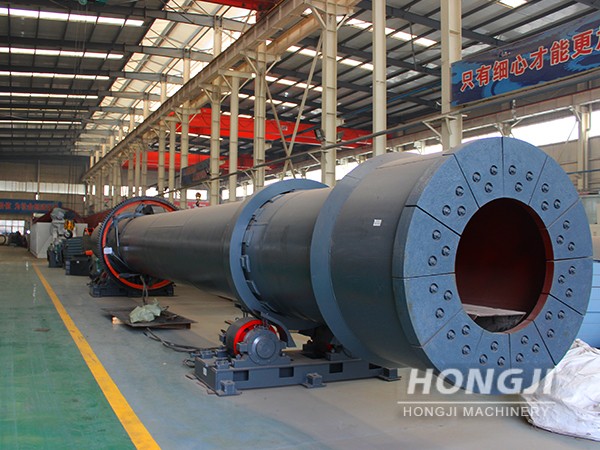

Rotary Kiln

Product Introduction

Rotary kiln is a large-scale industrial equipment used for high-temperature processing of materials. It is widely used in lime, cement, metallurgy, chemical and other industries. It rotates the cylinder to cause physical or chemical reactions of materials at high temperatures, thereby achieving process purposes such as calcining, roasting, and reduction.

Applied materials

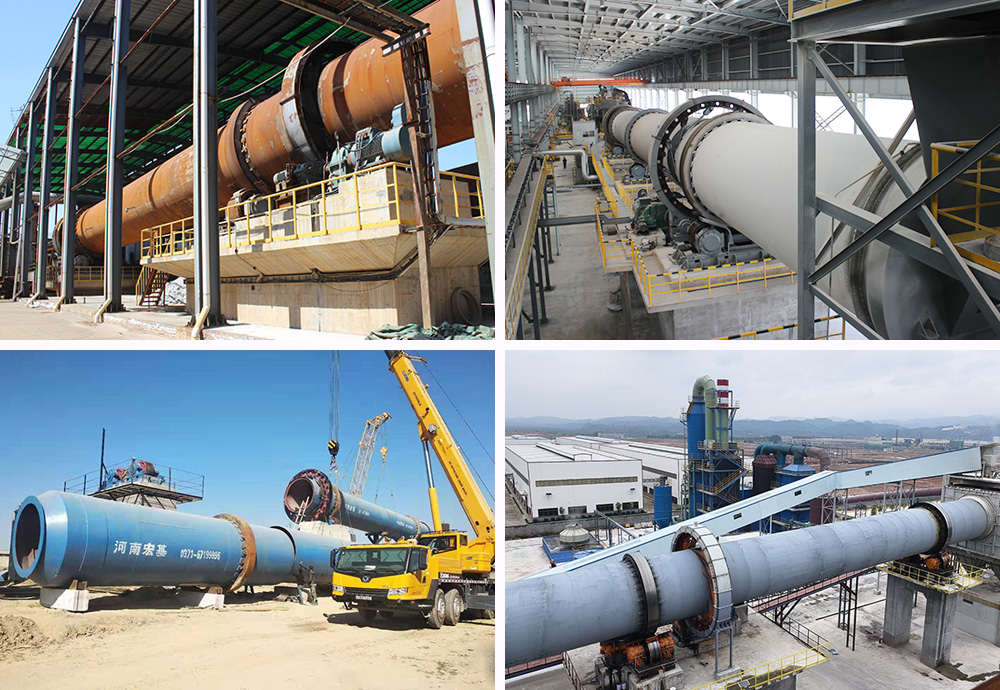

Rotary kilns are commonly used in lime plants, cement plants, steel plants and metallurgical plants. Applicable materials: limestone, kaolin, magnesite, bauxite, dolomite, sponge iron, lithium ore, ceramsite, clay, gypsum, chromium ore, nickel iron ore, zinc oxide, mineral mud, laterite nickel ore, petroleum coke, etc.

Features

1.Good calcination, high product quality;
2.High capacity;
3.Simple structure, reliable performance;
4.Easy operation.

Technical Parameter

Product Specification（m）	Diameter （m）	Length （m）	Capacity （t/d）	Rotation speed （r/min）	Motor power （kw）	Total weight （t）
Φ2.0×40	2	40	160	0.23-2.26	37	119
Φ2.2×45	2.2	45	180	0.21-2.44	45	128
Φ2.5×40	2.5	40	200	0.44-2.44	55	149.61
Φ2.5×50	2.5	50	250	0.62-1.86	55	187.37
Φ2.5×54	2.5	54	300	0.48-1.45	55	196.29
Φ2.7×42	2.7	42	350	0.10-1.52	55	198.5
Φ2.8×44	2.8	44	450	0.437-2.18	55	201.58
Φ3.0×45	3	45	500	0.5-2.47	75	210.94
Φ3.0×48	3	48	700	0.6-3.48	100	237
Φ3.0×60	3	60	800	0.3-2	100	310
Φ3.2×50	3.5	50	1000	0.6-3	125	278
Φ3.3×52	3.3	52	1300	0.266-2.66	125	283
Φ3.5×54	3.5	54	1500	0.55-3.4	220	363
Φ3.6×70	3.6	70	1800	0.25-1.25	125	419
Φ4.0×56	4	56	2300	0.41-4.07	315	456
Φ4.0×60	4	60	2500	0.396-3.96	315	510
Φ4.2×60	4.2	60	2750	0.41-4.07	375	633
Φ4.3×60	4.3	60	3200	0.396-3.96	375	583
