Product Introduction

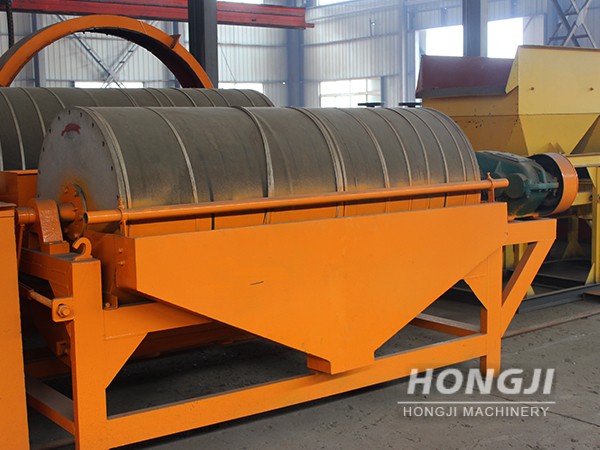

Permanent magnetic separator for separating strong magnetic minerals，which can be used for recovery of fine and strong magnetic minerals or removal of small amounts of ferromagnetic materials from non-magnetic minerals. And hongji magnetic separator is suitable for beneficiation of magnetite, pyrrhotite, hematite, limonite, siderite, etc.
Applied materials
Mining Iron, Beneficiation Of Magnetite, Pyrrhotite, Hematite, Limonite, Siderite, Etc.
Feturers
- Magnetic system is compounded of ferrite and permanent magnets; the average magnetic induction intensity of cylinder surface is 100～600mT.
- The same cylinder can be equipped with three types of tank adapting to different dressing process.
- Small area taken, good separation for magnetic mineral, reduce the load of next process.
Technical Parameter
| Model | Shell diameter （mm） | Shell lenght （mm） | Feeding size （mm） | Processing capacoty （t/h） | Power （kw） |
| CTB6012 | 600 | 1200 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | 3-0 | 170-280 | 11 |
