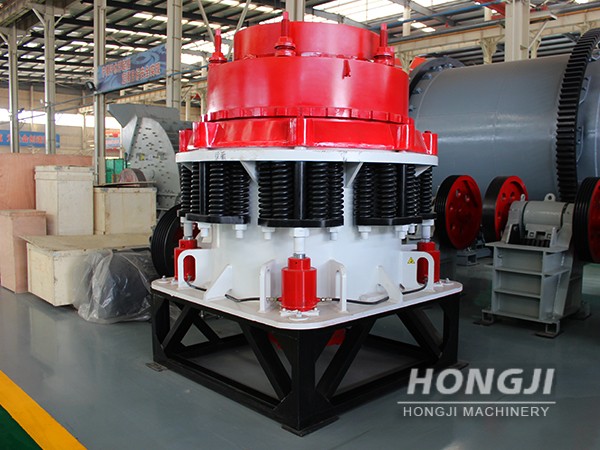

Product Introduction
Spring cone crusher is applied to process above medium hardness ore stone and rock.

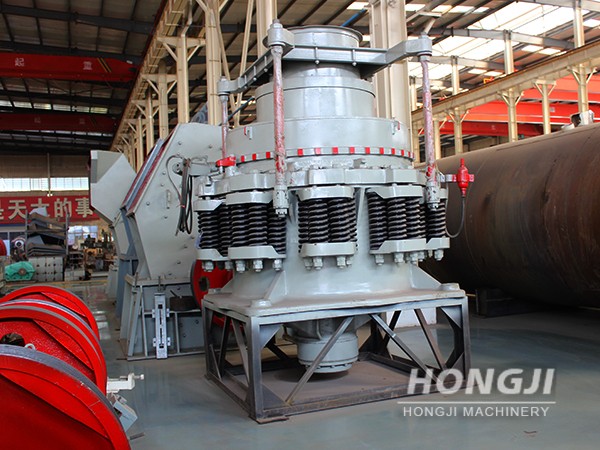

Its spring insurance system is overload protection to protect machine from damage of metal, grease and water seal are adopted, segregating stone powder and grease to guarantee stable working performance. This type of crushing chamber depends upon the purpose of mineral. The standard type (CS) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to hyper fine crushing. Spring cone crusher is widely applied in metallurgy, construction.

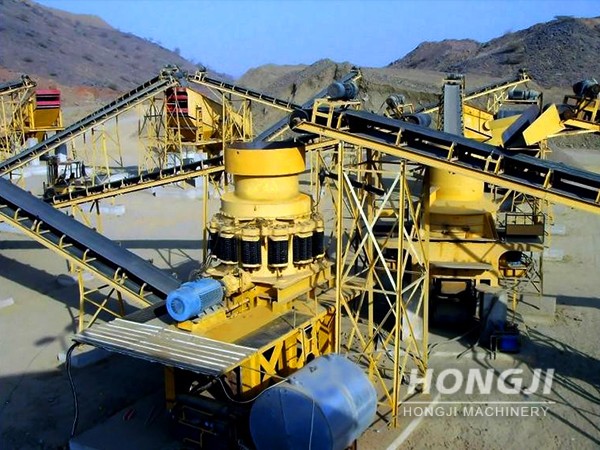

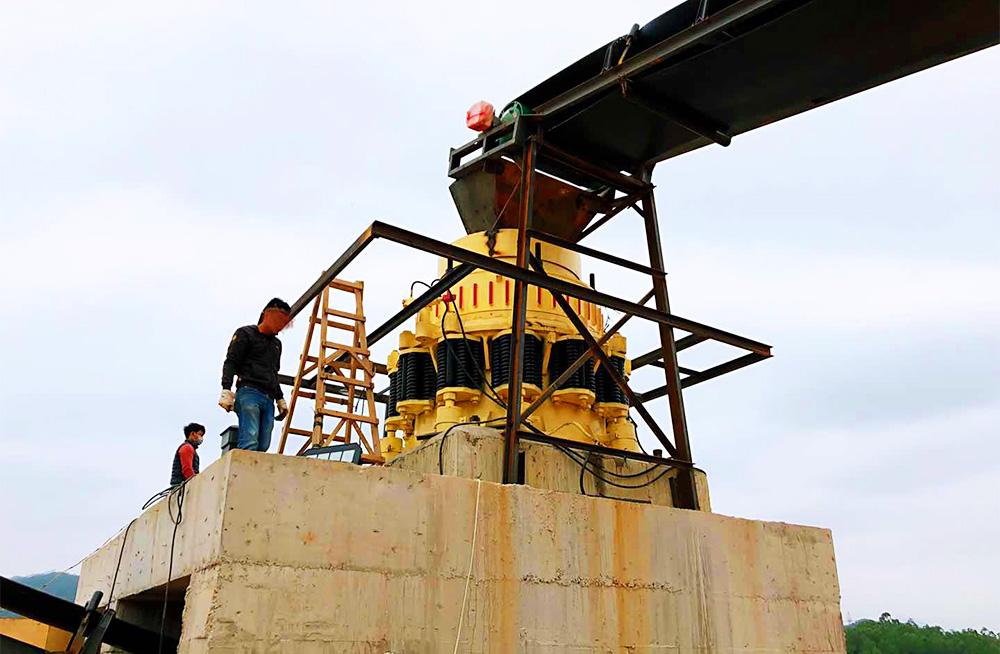

Spring cone crusher is applied for processing above medium hardness ore and rock and widely used in metallurgy, construction, hydropower, transportation, chemical and building materials industry with many advantages like reliable structure, high capacity, easy adjustment, and low cost, etc.

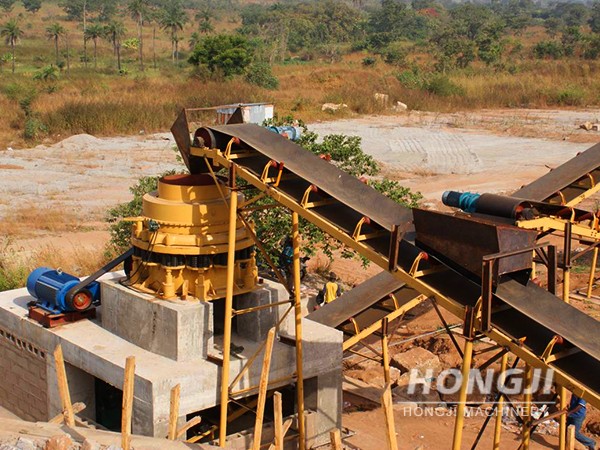

Applied material
Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.
Features

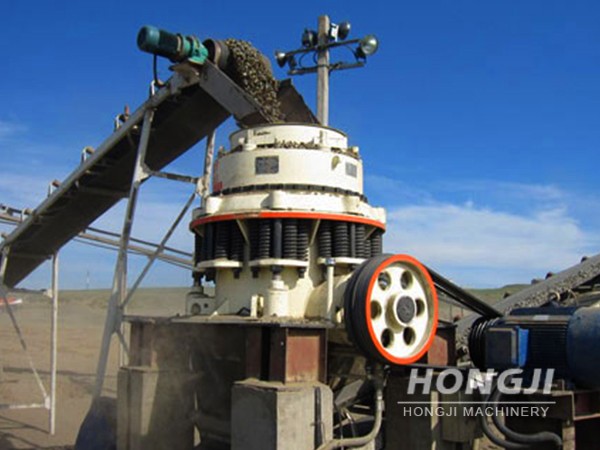

- Continuous rotation of the operated cone body and high productivity.
- Easy to press, impact and crush and low power consumption.
- Even particle size of products and uniformly surface wear of movable cone.
- Simple structure: frame, horizontal axis, movable cone, balance wheel, eccentric bushing, upper crushing wall (fixed cone), down crushing wall (movable cone), fluid coupling, lubrication system, hydraulic system, control system, etc.
- The movable cone swings close to discharge opening of crushing cavity, which intersects an equal parallel strip between them to make end products granularity. The feed opening is not large, which can deal with the primary crushed materials.
Technical Parameter
| Model | Movable Cone Diametermm (inch) | Chamber Style | Opening Side | Closed Side | Discharging Opening (mm) | REV (r/min) | Power (kw) | Motor Model | Capacity (t/h) | Machine Size (mm) |
| Max.Feeding (mm) | ||||||||||
| CSB75 | 900 (3′) | medium | 83 | 102 | 9-22 | 580 | 6-75 | Y315S-6/75 | 45-91 | 2821×1880 ×2164 |
| coarse | 159 | 175 | 13-38 | 59-163 | ||||||
| CSD75 | 914 (3′) | fine | 13 | 41 | 3-13 | 580 | 6-75 | Y315S-6/75 | 27-90 | 2821×1880 ×2410 |
| medium | 33 | 60 | 3-16 | 27-100 | ||||||
| coarse | 51 | 76 | 6-19 | 65-140 | ||||||
| CSB160 | 1295 (4 1/4′) | fine | 109 | 137 | 13-31 | 485 | 6-185 | Y355M2-6/185 | 109-181 | 2800×2342 ×2668 |
| medium | 188 | 210 | 16-31 | 132-253 | ||||||
| coarse | 216 | 241 | 19-51 | 172-349 | ||||||
| CSD160 | 1295 (4 1/4′) | fine | 29 | 64 | 3-16 | 485 | 6-160 | Y355M1-6/160 | 36-163 | 2800×2342 ×2668 |
| medium | 54 | 89 | 6-16 | 82-163 | ||||||
| coarse | 70 | 105 | 10-25 | 109-227 | ||||||
| CSB240 | 1650 (5 1/2′) | fine | 188 | 209 | 16-38 | 485 | 6-240 | 181-327 | 3911×2870 ×3771 | |
| medium | 213 | 241 | 22-51 | 258-417 | ||||||
| coarse | 241 | 268 | 25-64 | 299-635 | ||||||
| CSD240 | 1650 (5 1/2′) | fine | 35 | 70 | 5-13 | 485 | 6-240 | 90-209 | 3917×2870 ×3771 | |
| medium | 54 | 89 | 6-19 | 136-281 | ||||||
| coarse | 98 | 133 | 10-25 | 190-336 | ||||||
| CSB400 | 2134 (7′) | fine | 253 | 278 | 19-38 | 435 | 6-400 | 381-726 | 5200×4300 ×4700 | |
| medium | 303 | 334 | 25-51 | 608-998 | ||||||
| coarse | 334 | 369 | 31-64 | 870-1400 | ||||||
| CSD400 | 2134 (7′) | fine | 51 | 105 | 5-16 | 435 | 6-400 | 190-408 | 5200×4300 ×4700 | |
| medium | 95 | 133 | 10-19 | 354-508 | ||||||
| coarse | 127 | 178 | 13-25 | 454-599 | ||||||
